GATE TITAN MOSFET Complete Kit - Front Wired

If you want the absolute best AEG MOSFET on the market the GATE TITAN is the only choice. It's wide array of features and programming functions makes this the most versatile AEG tuning tool in the industry. The TITAN has the ability to adjust trigger sensitivity, pre-cocking, fire selector modes including burst fire and semi-auto only, rate of fire, low battery warning and protection, and lock-out sniper delay. In addition to what the MOSFET trigger board can do, GATE has also included in the complete kit their Tactical Programming Card for portable, on the go tweaking and tuning as well as their USB-Link for those who really want to totally overhaul their rifle's functionality.

The benefits of the GATE TITAN System include:

    • Easy drop-in installation with step by step install guides and videos
    • LiPO-Readiness and Protection (up to 14.8v 5000mAh, 60C LiPO Batteries)
    • Smart Fuse Technology Protects the MOSFET, motor, and gears
    • Low-Battery Protection
    • Customization Enthusiast friendly via Programming Card and USB-Link
    • Firmware Updates available online
    • Compatible with Single and Dual Sector Gears
    • Compatible with nearly all Version 2 Gearboxes

Gate TITAN Drop-In Trigger Module

The heart and soul of the GATE MOSFET System, the TITAN drop-in trigger module replaces the standard trigger and wiring harness as well as the mechanical cutoff lever with a high tech electronic version. GATE replaces all the mechanical switches that went faulty on other competitor's mosfets and uses optical sensors thus eliminating mechanical stress transferred from pulling the trigger to the PCB. This MOSFET has 8 optical sensors: 1 for the sector gear, 2 for the selector switch, and a total of 5 for the trigger!

GATE Tactical Programming Card

The Programming Card allows on the fly modifications to the TITAN's functions. The Programming Card is attached to the MOSFET unit and battery and allows adjustment to the following features:

    • Pre-Cocking & Boost
    • Burst Firing Modes
    • 6 Different Dire Selector Modes
    • Trigger Sensitivity
    • Rate of Fire Control
    • Battery Protection for LiPO and LiFE type batteries
    • Low Battery Warning Modes
    • Rate of Fire Stabilization

Gate USB-Link & Control Station

The USB link along with the GATE Control Station Software (Windows/Mac compatible) allows for all of the TITAN's features to be completely unlocked. The Link also allows the firmware on the TITAN to be kept up to date and if new features are released they can be uploaded and used. When Gate's USB-Link and Control Station are combined, users will have full access to the following features:

    • 6 Different Fire Selector Modes
    • Pre-Cocking & Boost Modes
    • Burst Mode with the ability to choose between 2 and 10 round burst
    • Rate of Fire Stabilization
    • Rate of Fire Control varying from 100% to 50% of normal ROF
    • Sniper Semi-Auto Lock & Delay from 0.5 seconds up to 3 seconds
    • AUG Trigger Mode - Half pull for semi-auto and full trigger pull for full auto firing
    • Battery Protection for LiPO & LiFE including low voltage warning and cutoff
    • Battery Cell Selection from 2 to 4 cells depending on Voltage
    • Adjustable Trigger Sensitivity
    • Statistics Tracking

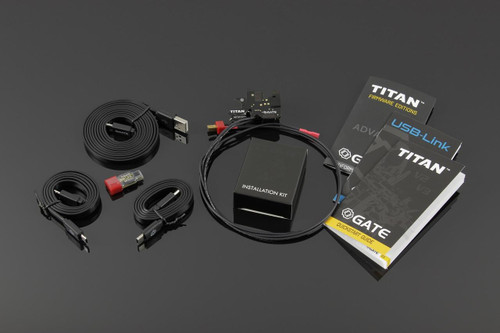

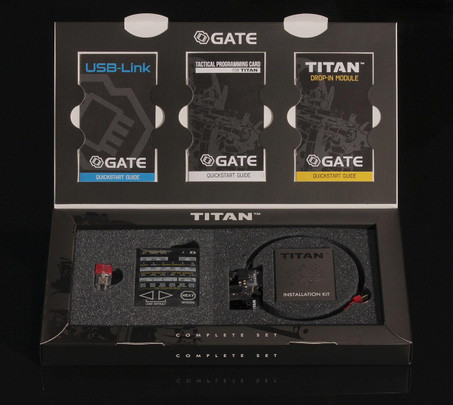

This package includes:

    • Gate TITAN Drop-In Trigger Module (Front-Wired)
    • Gate TITAN Tactical Programming Card (Deans Plugs)
    • USB-Link for Gate Control Station Windows/MAC App
    • USB Cable
    • USB-Link Quick Start Guide
    • Tactical Programming Card Quick Start Guide
    • TITAN Drop-In Module Quick Start Guide
    • TITAN Installation Kit
    • 1 Year Manufacturer's Warranty


More features and videos can be found in the Product Videos info tab
