How to Re-Install a G&G Raider Outer Barrel

If the outer barrel comes loose on your G&G CM16 Raider-L or Raider-S you can re-attach it by following these instructions.

Tools needed:  2mm hex key

Step 1:  Re-insert the outer barrel over the inner barrel of the gun.  Make sure that it is facing in the right direction, then genly push it into position.

Step 2:  Makre sure that the barrel is lined up correctly.

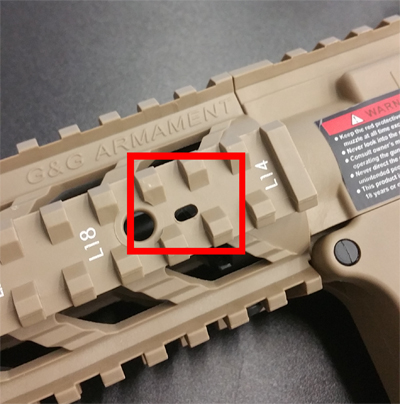

Steo 3:  Using a 2mm hex key, tighten the barrel retaining screws on each side of the gun.  You can access them through the RIS (shown below).


×
×
